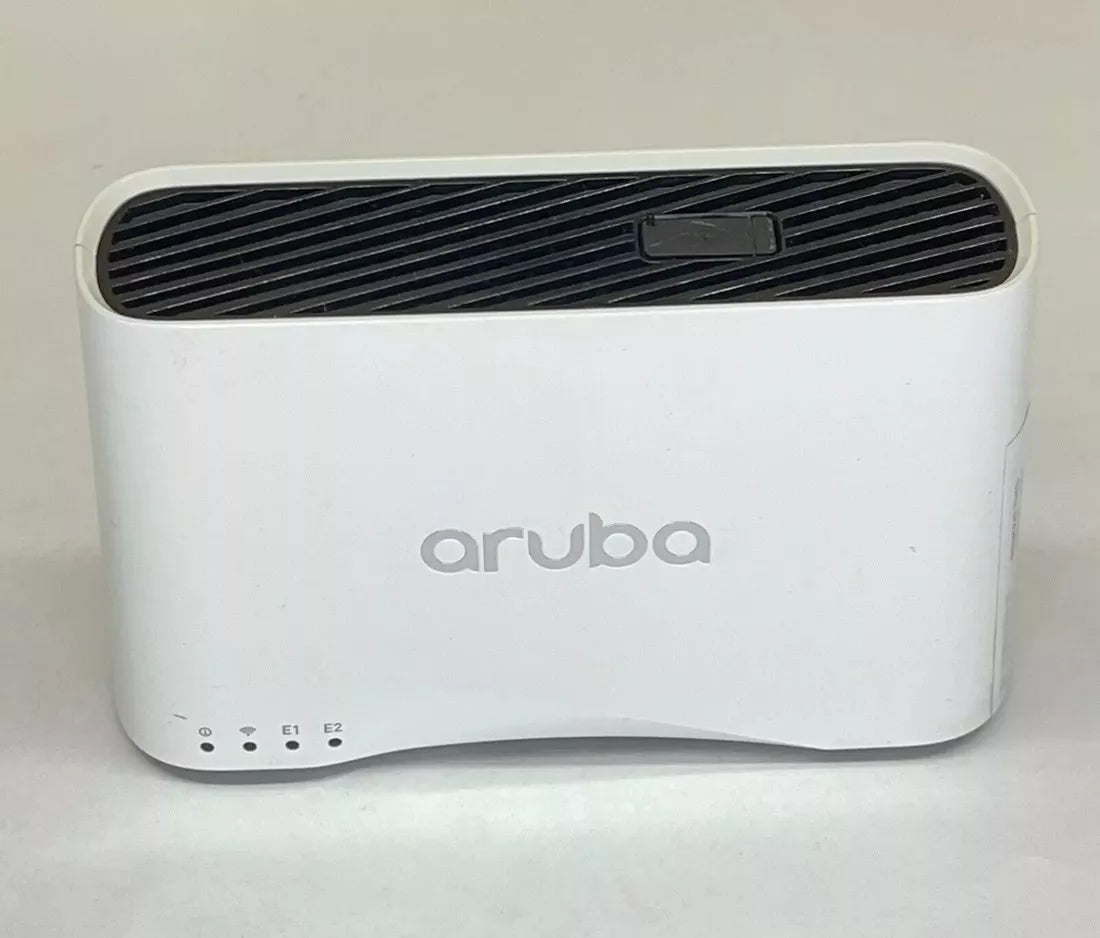

HPE JY714A Aruba AP-203R Access Point | USED

HPE JY714A Aruba AP-203R Access Point | USED

Part Number: JY714A

Condition: Used

#### **HPE JY714A Aruba Ap-203r (us) - Wireless Access Point.**

**Key Features :**

Form Factor: External

Connectivity Technology: Wireless

Data Transfer Rate: 867 Mbps

Line Coding Format: Cck, 64 Qam, 256 Qam, Bpsk, Qpsk, 16 Qam

Data Link Protocol: Ieee 802.11b, Ieee 802.11a, Ieee 802.11g, Ieee 802.11n, Ieee 802.11ac

Spread Spectrum Method: Ofdm, Dsss

Frequency Band: 2.4 Ghz, 5 Ghz

Performance:

maximum Data Rate (2.4 Ghz): 400 Mbps

Maximum Data Rate (5 Ghz): 867 Mbps

Capacity:

wireless Clients Per Wi-fi Radio: 255

Bssids Per Radio: 16

Status Indicators: Port Status, Power, System, Status

Features : Auto-uplink (auto Mdi/mdi-x), Dfs Support, Quality Of Service (qos), Trusted Platform Module (tpm), 2t2r Mimo Technology, Maximum Ratio Combining (mrc), Low Density Parity Check (ldpc), Transmit Beam-forming (txbf) Ready, Energy Efficient Ethernet, Cyclic Delay Diversity (cdd), Space Time Blocking Code (stbc), Advanced Cellular Coexistence (acc), Cyclic Shift Diversity (csd), Aruba Beacons Bluetooth Low-energy (ble) Technology, Packet Aggregation A-mpdu, Packet Aggregation A-msdu, Wireless Intrusion Protection, Air Monitor (am)

Compliant Standards: Ieee 802.11b, Ieee 802.11a, Ieee 802.3af, Ieee 802.11g, Wi-fi Certified, Ieee 802.11n, Ieee 802.3az, Ieee 802.11ac

**Antenna :**

Antenna: Internal

Antenna Qty: 2

Directivity: Omni-directional

Gain Level: 2.9 Dbi

**Expansion / Connectivity :**

Interfaces:

1 X 1000base-t (uplink) - Rj-45

1 X 1000base-t (poe) - Rj-45

1 X 1000base-t - Rj-45

1 X Usb 2.0 - Type A

1 X Console
