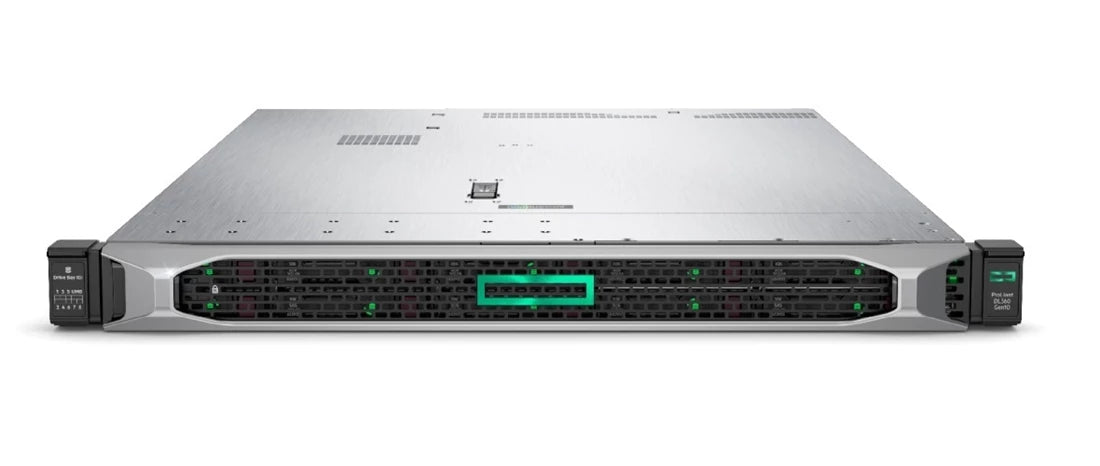

HPE P19778-B21 DL360 Gen10 6230 1P 32GB-R P408i-a NC 8SFF 800W PS Server NEW | USED

HPE P19778-B21 DL360 Gen10 6230 1P 32GB-R P408i-a NC 8SFF 800W PS Server NEW | USED

Part Number: P19778-B21

Condition: Used

**General Information :**

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number : P19778-B21

Manufacturer Website Address : WWW.HPE.COM

Product Name : Proliant Dl360 Gen10 - 1u Rack Mountable Server ( Nc Model)

**Processor & Chipset :**

Cpu : 2nd Gen Intel Xeon Gold 6230 / 2.1 Ghz

Max Turbo Speed : 3.9 Ghz

Number Of Cores : 20-core

Cpu Qty : 1

Max Cpu Qty : 2

Cpu Upgradability : Upgradable

Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2

Cpu Socket : Fclga3647 Socket

Chipset Type : Intel C621

Cache Memory :

Installed Size : L3 Cache - 27.5 Mb

Cache Per Processor : 27.5 Mb

**Memory :**

Installed Size : 32 Gb / 768 Gb (max)

Technology : Ddr4 Sdram

Effective Memory Speed : 2933 Mhz

Rated Memory Speed : 2933 Mhz

Form Factor : Dimm 288-pin

Slots : 12 (total) / 11 (empty)

Features : Registered

Configuration Features : 1 X 32 Gb

Ram Supported : Pc4-20800 - 768 Gb Registered Pc4-20800 - 3 Tb Load-reduced Pc4-20800 - 192 Gb Non-volatile

**Storage:**

Hard Drive : None

Optical Drive : None

**Storage Controllers:**

Type : Raid

Controller Interface Type : Sata 6gb/s / Sas 12gb/s

Storage Controller Name : HPE Smart Array P408i-a

Channel Qty : 8

Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm

Buffer Size : 2 Gb

**Display & Graphics Controllers :**

Video Memory : 16 Mb

Video Interfaces : Vga

**Network & Communication:**

Interface (bus) Type : Pci Express 2.1 X4

Ethernet Ports : 4 X Gigabit Ethernet

Ethernet Controller : HPE 366flr

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp

Remote Management Controller : Integrated Lights-out 5

Features : Wake On Lan (wol), Pxe Support

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1as, Ieee 802.3az

**Expansion / Connectivity :**

Bays :

1 (total) / 1 (free) X External Universal Media Bay

8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :

1 (total) / 1 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height

1 (total) / 1 (free) X Pcie 3.0 X8 - Low-profile

1 (total) / 1 (free) X Flexiblelom - Three-quarter-length, Full-height (low-profile)

1 (total) / 1 (free) X Microsd Card (internal)

1 (total) / 1 (free) X Pcie X16 - Full-height

Interfaces :

1 X Hp Ilo - Type A (1 In Front)

1 X Hp Ilo - Rj-45

5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)

1 X Vga

4 X Lan (gigabit Ethernet) - Rj-45

**Miscellaneous :**

Included Accessories :

5 X Standard Hot Plug Fans

Compliant Standards :

Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Fips 201 Piv, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

**Power Description :**

Device Type : Power Supply - Hot-plug

Power Redundancy : Optional

Power Redundancy Scheme : 1+1 (with Optional Power Supply)

Installed Qty : 1

Max Supported Qty : 2

Nominal Voltage : Ac 120/230 V (50/60 Hz)

Power Provided : 800 Watt

80 Plus Certification : 80 Plus Platinum

**Dimensions & Weight :**

Width : 17.1 In

Depth : 27.8 In

Height : 1.7 In

Weight : 28.75 Lbs
