Part Number: E830CQDA2M

Condition: BRAND NEW

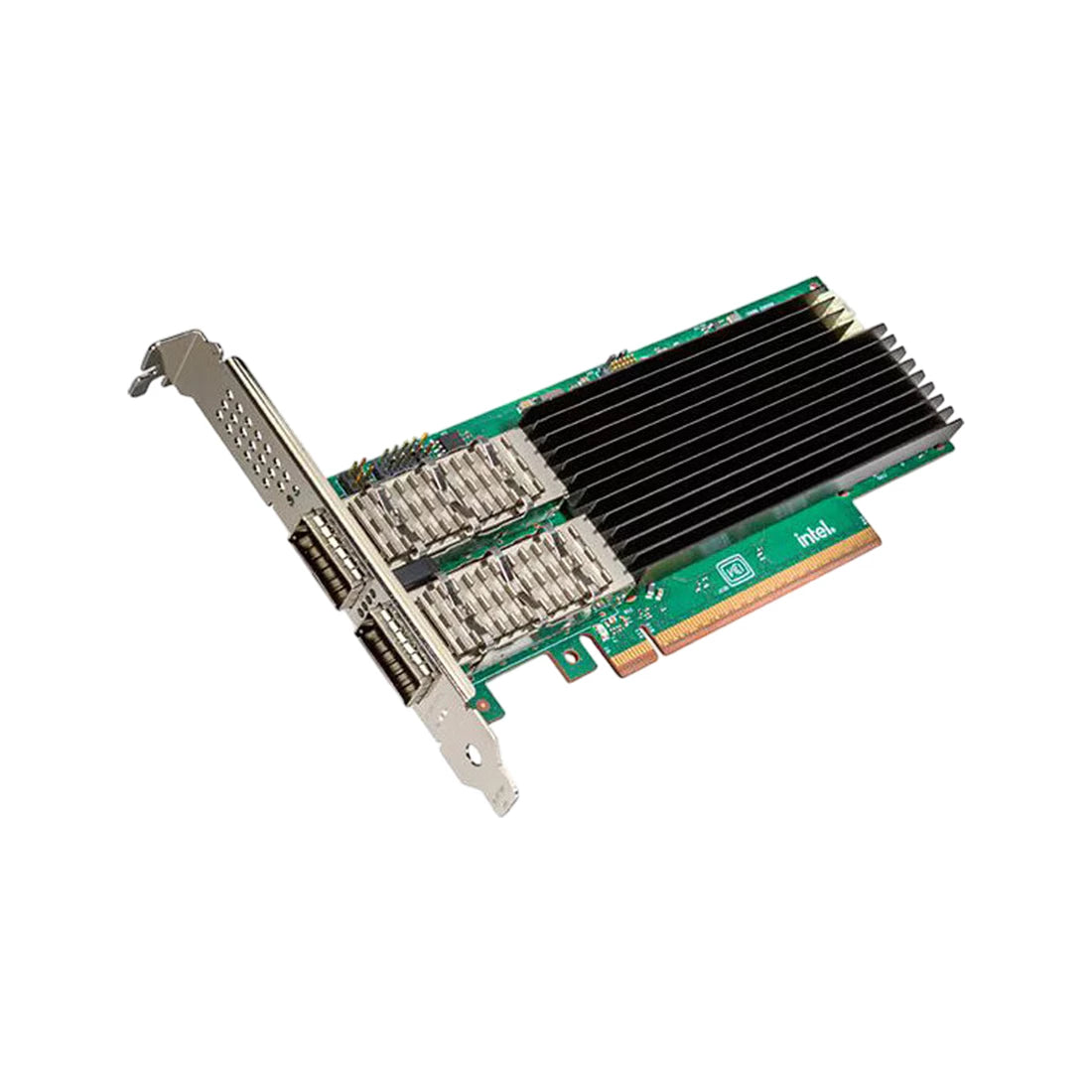

**INTEL E830CQDA2M Ethernet Network Adapter**

**Overview**

The E830CQDA2M, Configurable To Speeds Up To 200gbe, Supports The Growing Bandwidth Demands Of Modern Networks, Especially For Cloud Services, Virtualized Environments, And Large Data Transfers.

The Low-power Design Enables Decreased Energy Consumption Across The System To Reduce Costs And Environmental Impact, Solving Increasingly Important Power Density Challenges. Modern Security Features, Key Timing Protocols, Fast Data Exchange, And Reduced Latency Make The E830-cqda2 An Optimal Choice For Applications Supporting Critical, Bandwidth-heavy Technologies Without The Complexity And High Cost Of Proprietary Technologies.

This Adapter Also Features An Ethernet Port Configuration Tool (epct). In Addition To The Default Configuration Of 2x100, Four Other Configurations Are Possible: 1x200 (port 1 Only), 4x50, 2x50, And 8x25 (via Breakout Cables).

INTEL Ethernet 800 Series Network Adapters, E830 And E810 Families, Share Drivers Ensuring Software Consistency Across Generations Of Products For Easy Deployment.

**Optimized For INTEL Xeon Processors**

Data Centers And Workloads Need Computing Capacity And Powerful Ways To Move Data Securely. INTEL® Architecture Offers Both. Deployment-ready, Reliable, And Affordable, INTEL Ethernet E830 Network Adapters Are The Perfect Choice For Amplifying Server Performance With INTEL® Xeon® 6 Processors.

**Key Specifications**

Speeds Up To 200gbe

Supports Multiple Port Configurations Using Epct

Pcie 5.0 X8 Or Pcie 4.0 X16

Dynamic Device Personalization (ddp)

Data Plane Development Kit (dpdk) Enabled

Ieee 1588 Precision Time Protocol V2

Precision Time Measurement (ptm) V1.0a

Commercial National Security Algorithm (cnsa) 1.0 Compliant

Modern Security With Signed Firmware, Secure Boot, And Hardware Root Of Trust (rot)

**Adapter Features**

Data Rate Supported: 200/100/50/25/10gbe

Bus Type/bus Width: Pcie 5.0 X8 Or 4.0 X16

Form Factor: Standard Pcie

Controller: INTEL Ethernet Controller E830

Supported Operating Systems: Linux

Hardware Certifications: Bsmi, Ce, Cmim, Fcc, Ices, Kcc, Rcm, Ukca, Curus, And Vcci

Compliance: Rohs And Bmsi Rohs Compliant. Product Is Compliant With Taiwan Bureau Of Standards, Metrology And Inspection (bmsi) And Eu

rohs Directive 2 2011/65/eu (directive 2011/65/eu) And Its Amendments.

**Technical Specifications**

Storage Humidity Maximum: 90% Non-condensing Relative Humidity At 35 °c

Storage Temperature: -40 °c To 70 °c (-40 °f To 158 °f)

Operating Temperature: 0 °c To 65 °c (32 °f To 149 °f)

Led Indicators: Activity (blinking) No Activity (off) Link Speed (green = Max Speed, Amber = Less Than Max, Off = No Link)

Vertical Segment: Server

Cable Medium: Copper, Fiber

Cabling Type: Qsfp28 Ports - Dac, Optics, And Aocs
