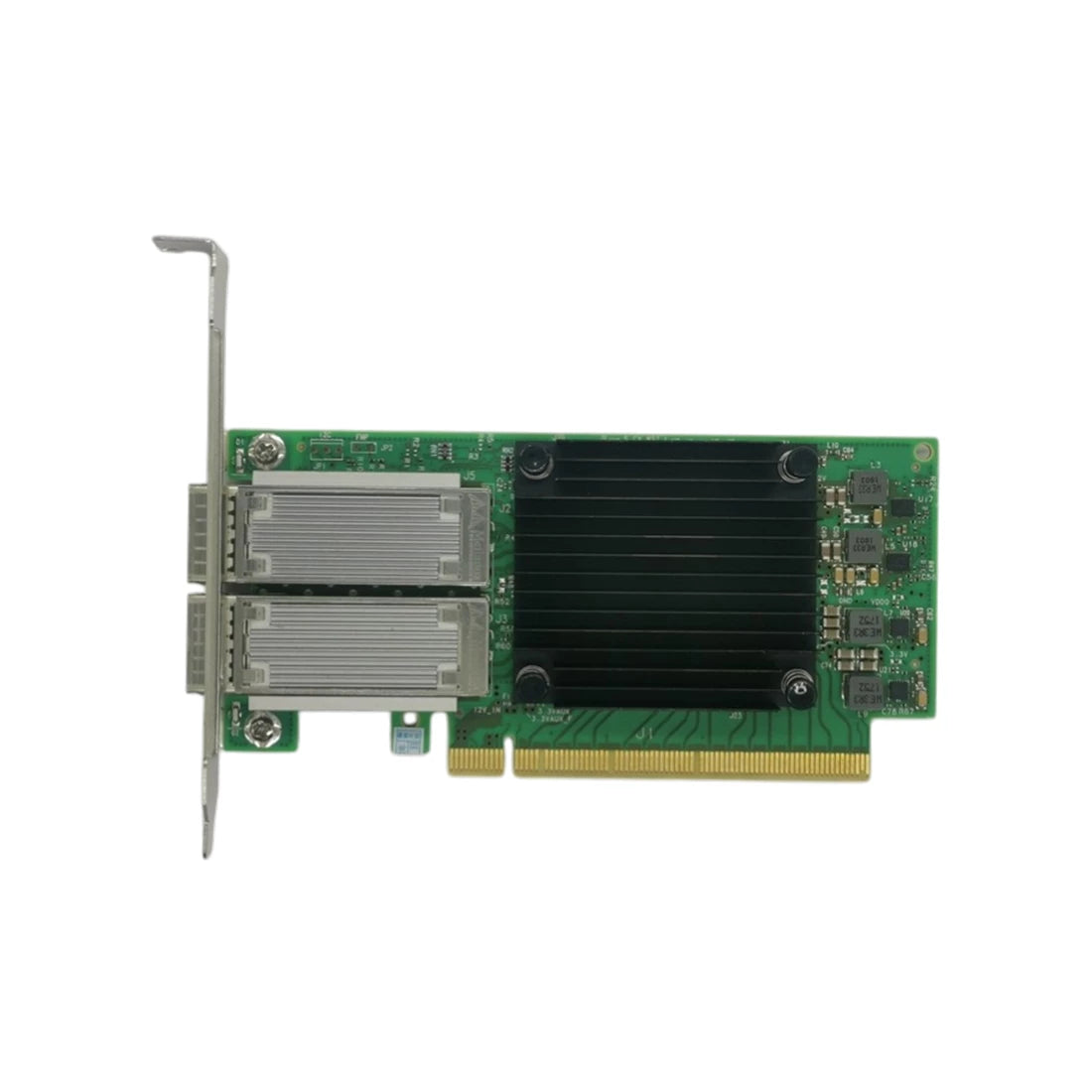

Mellanox MCX556A-EDAT ConnectX-5 EX VPI Adapter Card, EDR IB (100Gb/s) and 100GbE, Dual-Port QSFP28 PCIe4.0 x16 | USED

Mellanox MCX556A-EDAT ConnectX-5 EX VPI Adapter Card, EDR IB (100Gb/s) and 100GbE, Dual-Port QSFP28 PCIe4.0 x16 | USED

Part Number: MCX556A-EDAT

Condition: Used

**MELLANOX MCX556A-EDAT Connectx-5 Ex Vpi Adapter Card, Edr Ib (100gb/s) And 100gbe, Dual-port Qsfp28, Pcie4.0 X16**

**Main Specifications**

**Physical:**

**Size:** 2.71 In. X 5.6 In. (68.90mm X 142.24 Mm) – Low Profile

**Connector:** Dual Qsfp28 Infiniband And Ethernet (copper And Optical)

**Protocol Support:**

**Infiniband:** Ibta V1.3a

**Auto-negotiation:** 1x/2x/4x Sdr (2.5gb/s Per Lane), Ddr (5gb/s Per Lane), Qdr (10gb/s Per Lane), Fdr10 (10.3125gb/s Per Lane), Fdr (14.0625gb/s Per Lane), Edr (25gb/s Per Lane) Port

**Ethernet:** 100gbase-cr4, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr, 10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr

**Data Rate:**

Infiniband: Sdr/ddr/qdr/fdr/edr

Ethernet: 1/10/25/40/50/100 Gb/s

**Pci Express Gen4:** Serdes @ 16.0gt/s, 16 Lanes (2.0 And 1.1 Compatible)

**Voltage:** 12v

**Power And Cable:**

Typical Power - Passive Cables- 19.3w

Maximum Power - Passive Cables- 23.4w

Maximum Power - 1.5w Active Cables- 26.8w

Maximum Power - 2.5w Active Cables- 29.0w

**Maximum Power Available Through Qsfp28 Port:** 5w

**Environmental**

**Temperature**

Operational: 0°c To 55°c

Non-operational: -40°c To 70°c

**Humidity**

Operational: 10% To 85% Relative Humidity

Non-operational: 10% To 90% Relative Humidity

**Altitude (operational)** 3050m

**Rohs** Rohs-r6
