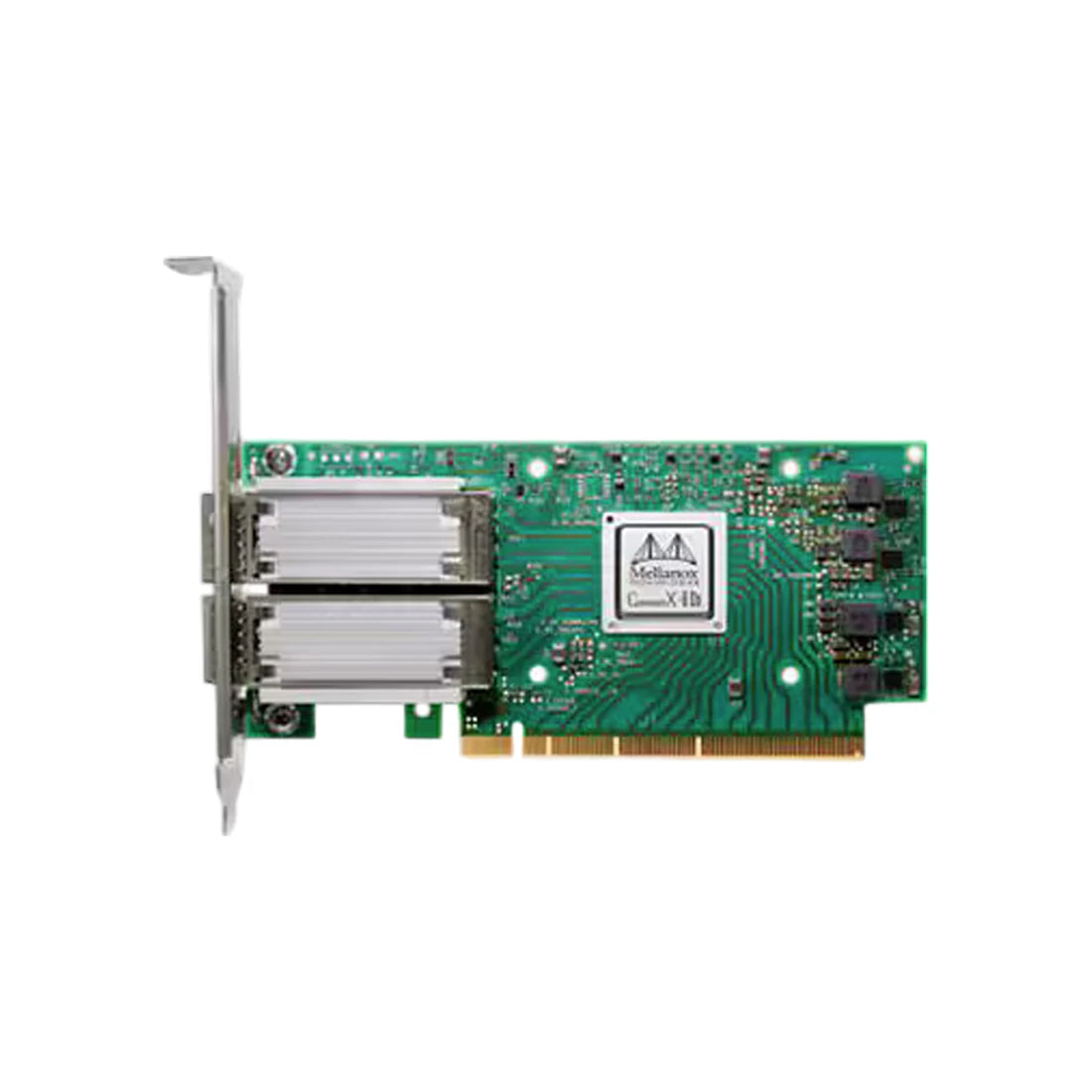

Mellanox MCX623106AC-CDAT ConnectX-6 Dx EN adapter card, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Crypto and Secure Boot LP Ref (Dell OEM) | USED

Mellanox MCX623106AC-CDAT ConnectX-6 Dx EN adapter card, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Crypto and Secure Boot LP Ref (Dell OEM) | USED

Part Number: MCX623106AC-CDAT

Condition: Used

**MELLANOX MCX623106AC-CDAT Connectx-6 Dx En Adapter Card, 100gbe, Dual-port Qsfp56, Pcie 4.0 X16, Crypto And Secure Boot**

**Specifications**

**Physical**

**Size:** 5.59in. X 2.71in (142.00mm X 68.90mm)

**Connector:** Dual Qsfp56 Ethernet (copper And Optical)

**Data Rate:** Ethernet - 1/10/25/40/50/100 Gb/s

**Protocol Support**

**Ethernet:** 100gbase-cr2, 100gbase-cr4, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr, 100gbase-cr2, 100gbase-kr2, 100gbase-sr2

**Pci Express Gen 3.0/4.0** Serdes @ 16.0gt/s, 16 Lanes (2.0 And 1.1 Compatible)

**Capabilities** Crypto Enabled Secure Boot Enabled

**Power And Airflow**

**Typical Power** Passive Cables - 18.7w (pcie Gen 3.0) 19.52w (pcie Gen 4.0)

**Maximum Power** Passive Cables - 25.28w (pcie Gen 3.0) 26.64w (pcie Gen 4.0)

**Maximum Power Available Through Qsfp56 Port** 5w (each Port)

**Voltage:** 3.3aux

**Maximum Current:** 100ma

**Airflow Requirements**

Passive Cables - 550lfm (hot Aisle - Heatsink To Port)

Active 2.5w Cable - 700lfm (hot Aisle - Heatsink To Port).

**Environmental**

**Temperature**

Operational: 0°c To 55°c

Non-operational: -40°c To 70°c

**Humidity**

Operational: 10% To 85% Relative Humidity

Non-operational: -10% To 90% Relative Humidity

**Altitude (operational)** 3050m

**Regulatory** Rohs Compliant
