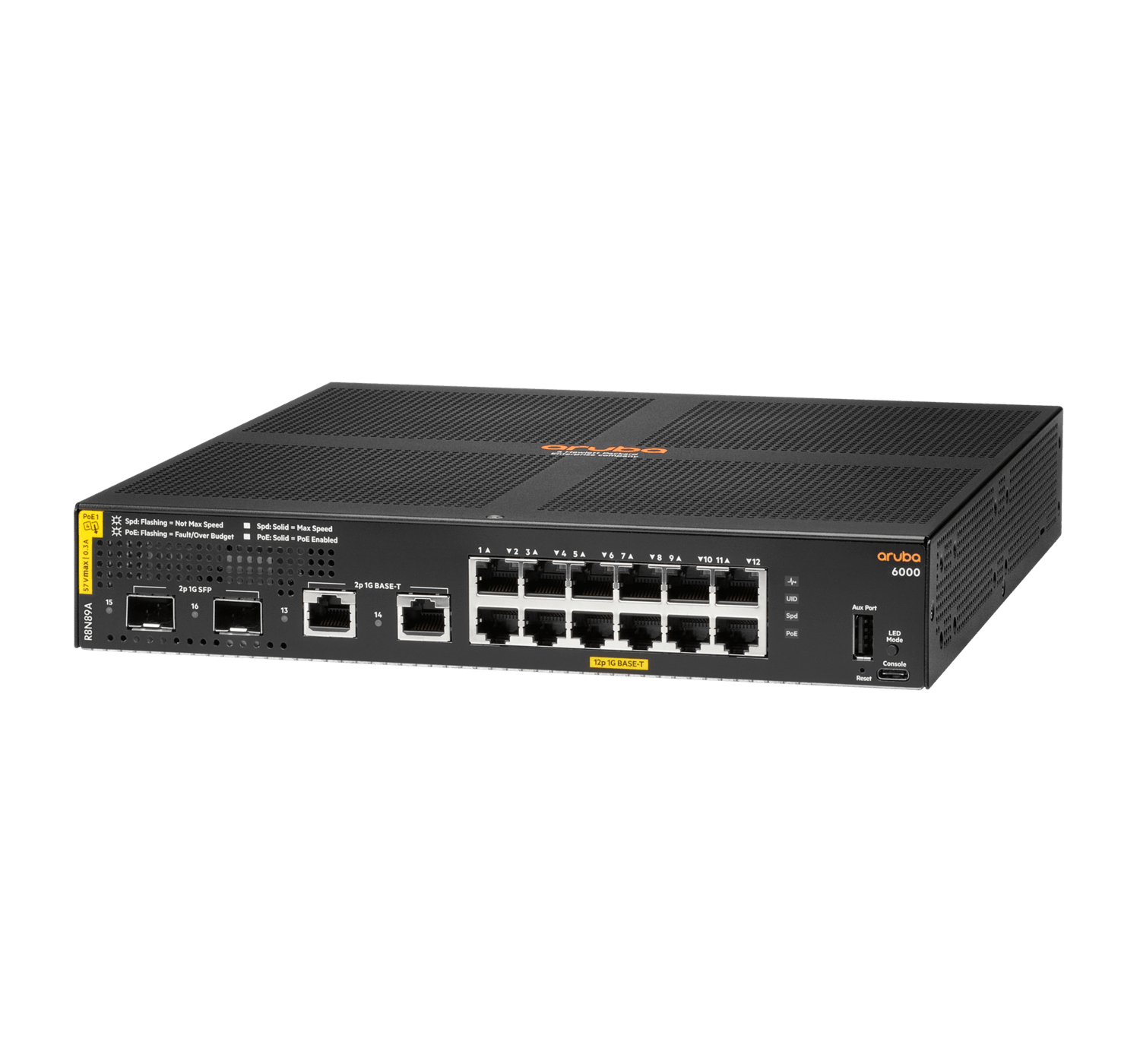

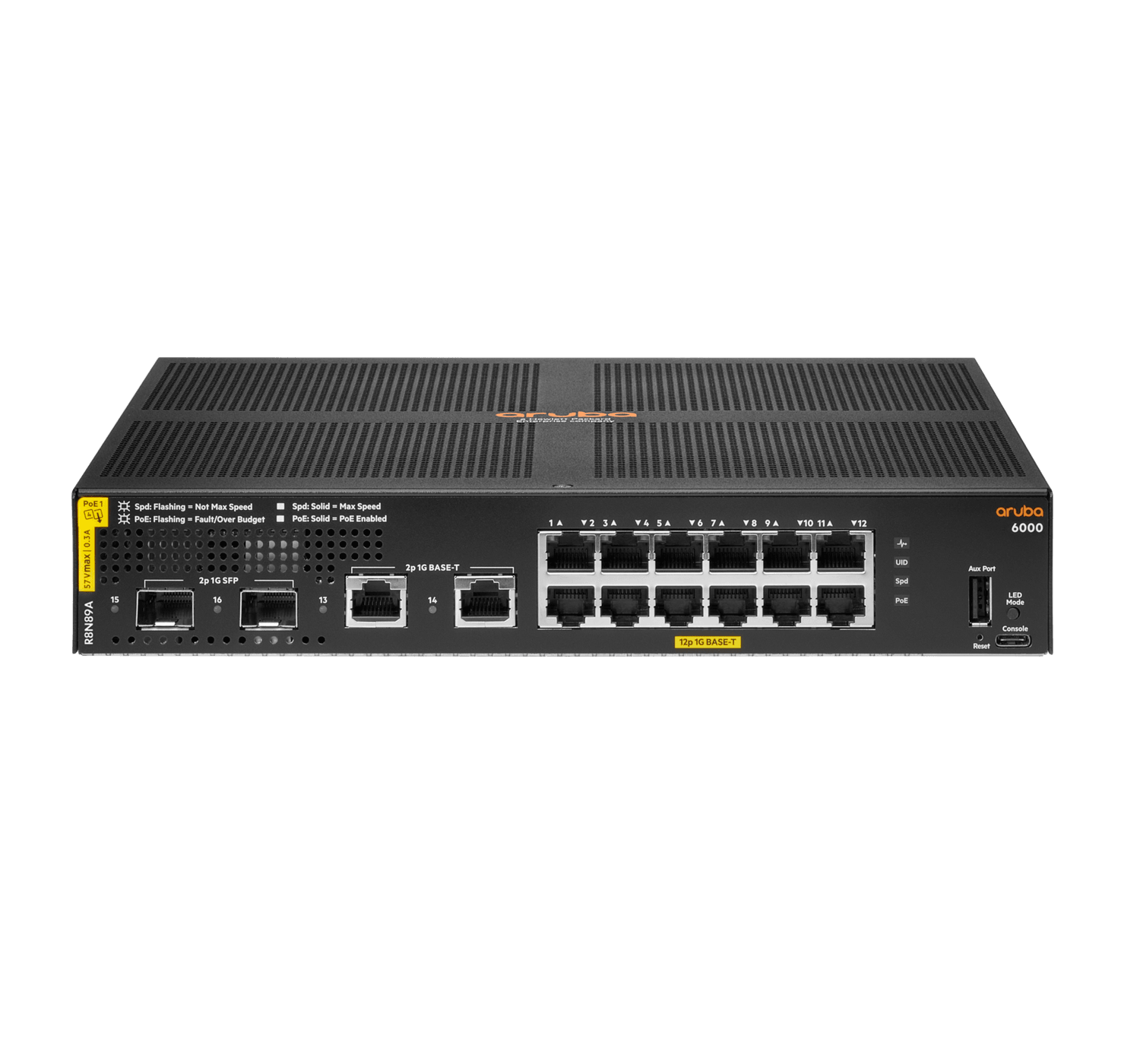

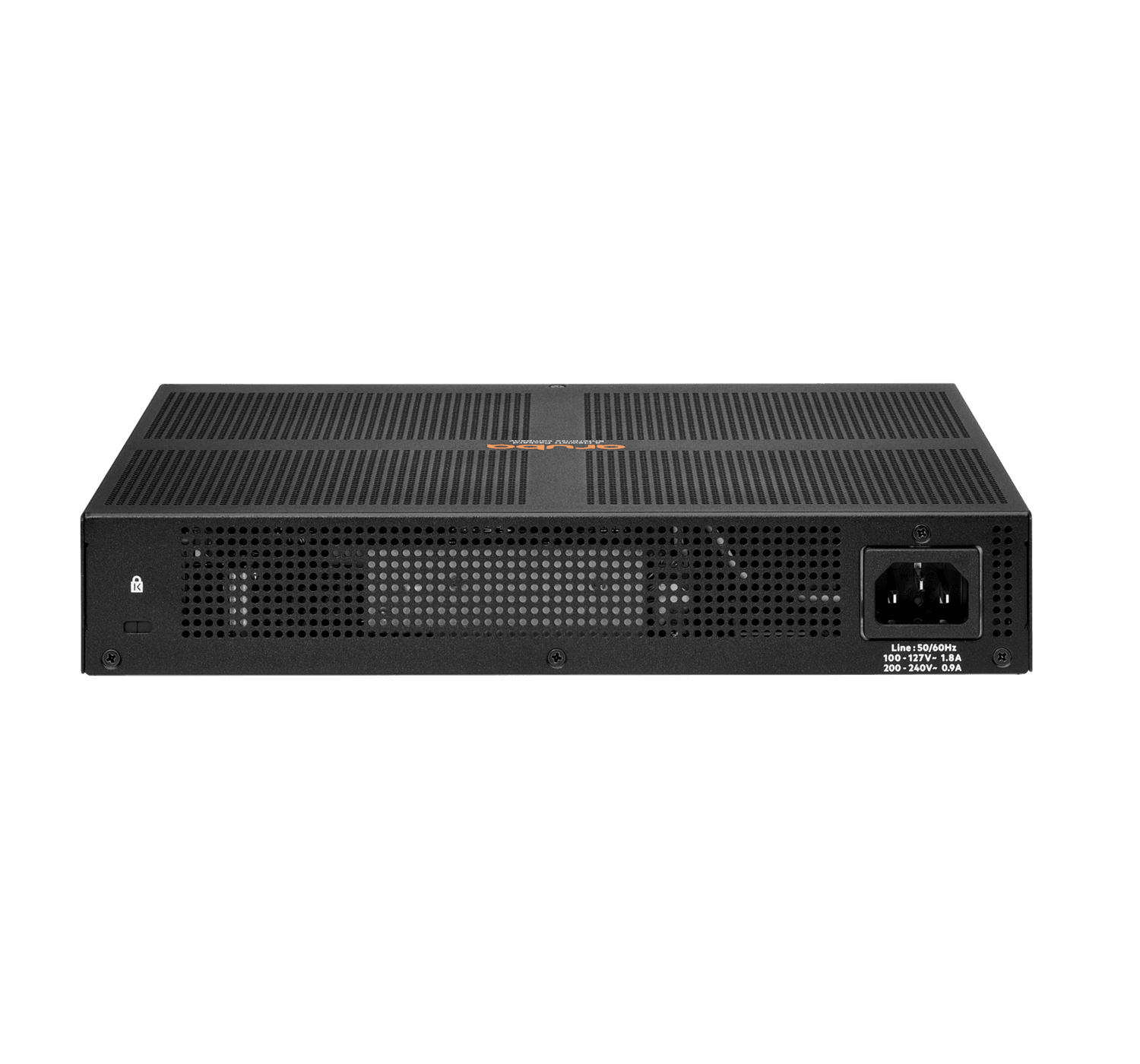

x(NEW VENDOR) ARUBA R8N89A Aruba 6000 12G CL4 2SFP 139W Switch
Overview
Designed for reliable, simple, and security-enhanced access, the Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.
R8N89A provides these features:
Entry Level Aruba CX Access Layer Switches
- The Aruba CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.
- Using Aruba AOS-CX operating system across Aruba CX switching platforms and access-to-core-to-data center deployment domains provides a simpler, more consistent operator experience.
- Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
- Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE.
- Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
- The Aruba CX 6000 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
- Deploy wireless access points and IoT devices with Aruba CX 6000 switch models that support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
- Up to four built-in wire speed 1GbE uplinks remove bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
- The Aruba CX 6000 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, Aruba Central1, easy to use Web GUI, or industry standard CLI.
- Aruba NetEdit introduces automation that allows for rapid network-wide changes, and verifies policy conformance post network updates.
- Software-defined ready with REST APIs for fine-grained programmability of network tasks.
- Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
Specification
|
Miscellaneous |
|
|
Compliant Standards |
CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950, CNS 13438, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, VCCI-CISPR 32:2016 Class A, CISPR 35, EN 55035:2017, EN 55032:2015/AC:2016-07 Class A, EN55024:2010:A1, IEC 62368-1 Second Edition |
|
Dimensions |
|
|
Width |
10 in |
|
Depth |
10 in |
|
Height |
1.7 in |
|
Manufacturer Warranty |
|
|
Service & Support |
Limited warranty - lifetime |
|
Environmental Parameters |
|
|
Min Operating Temperature |
32 °F |
|
Max Operating Temperature |
113 °F |
|
Humidity Range Operating |
15 - 95% (non-condensing) |
|
Humidity Range Storage |
15 - 90% (non-condensing) |
|
General |
|
|
Device Type |
Switch - 12 ports - managed - stackable |
|
Enclosure Type |
Rack-mountable 1U |
|
Subtype |
Gigabit Ethernet |
|
Ports |
12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP + 2 x 1000Base-T |
|
Power Over Ethernet (PoE) |
PoE |
|
PoE Budget |
139 W |
|
Performance |
Packet buffer size: 12.38 MB ¦ Throughput: 23.8 Mpps ¦ Switching capacity: 32 Gbps ¦ Latency (1 Gbps): 2.3 µs ¦ Latency (10 Gbps): 2.6 µs |
|
Capacity |
Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 |
|
MAC Address Table Size |
8192 entries |
|
Jumbo Frame Support |
9198 bytes |
|
Routing Protocol |
IGMPv2, IGMPv3 |
|
Remote Management Protocol |
SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
|
Encryption Algorithm |
SSL |
|
Authentication Method |
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|
Features |
Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, MLD snooping, Trusted Platform Module (TPM), fanless, LACP support, LLDP support, DHCP client, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing |
|
Compliant Standards |
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
|
Processor |
1 x ARM A9: 1.016 GHz |
|
RAM |
4 GB DDR3 SDRAM |
|
Flash Memory |
16 GB |
|
Expansion / Connectivity |
|
|
Interfaces |
12 x 10/100/1000 Base-T RJ-45 PoE Class 4 - 139 W ¦ 2 x 10Gbit LAN SFP ¦ 2 x Gigabit LAN ¦ 1 x USB Type A ¦ 1 x USB-C console |
|
Power |
|
|
Power Device |
Internal power supply |
|
Voltage Required |
AC 100-240 V (50/60 Hz) |
|
Power Consumption Operational |
21.9 Watt |
