Description

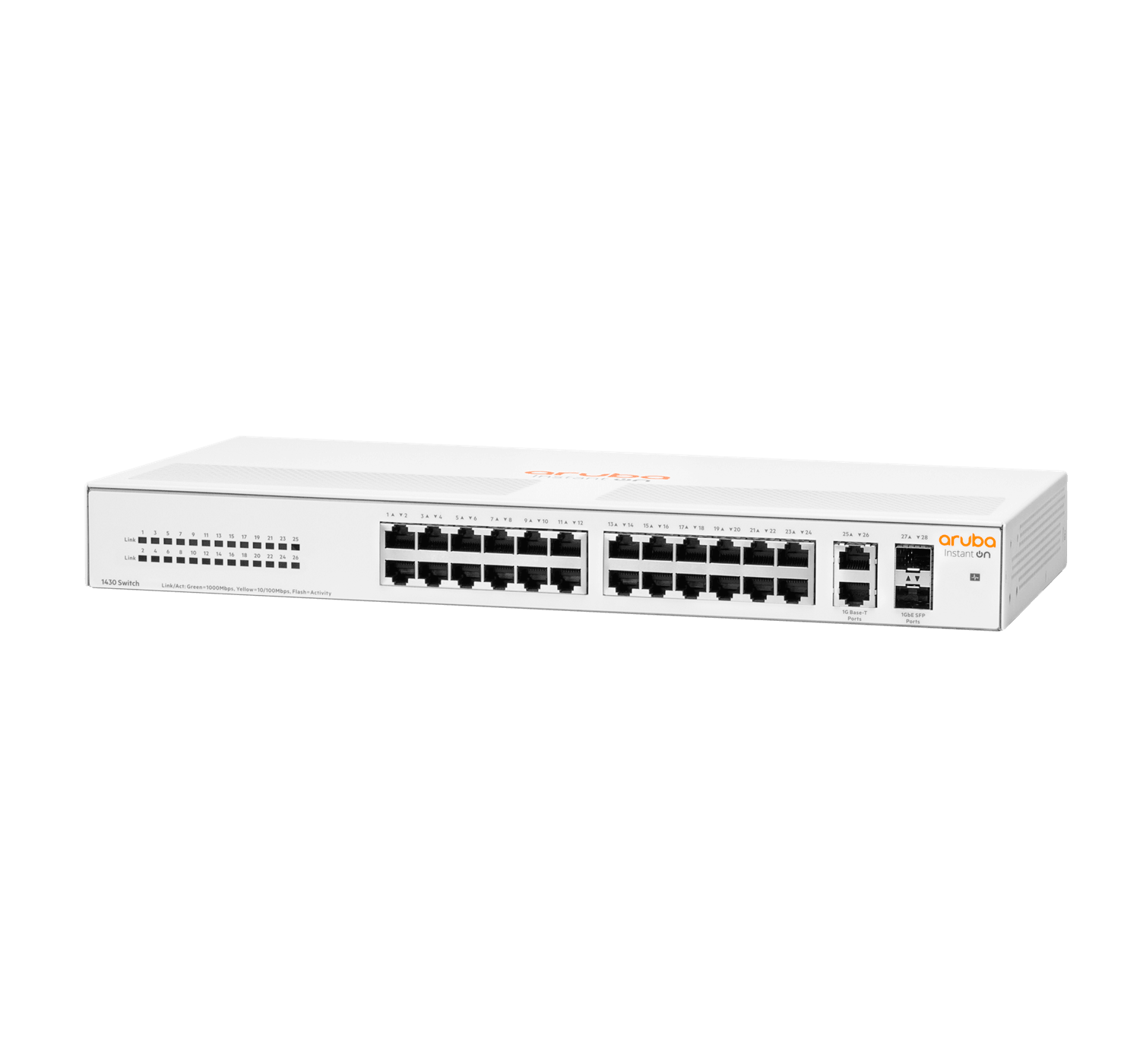

x(NEW VENDOR) ARUBA R8R50A Aruba Instant On 1430 26G 2SFP Switch
Overview
26 RJ-45 autosensing 10/100/1000 ports
2 SFP 100/1000 Mbps ports
min=0 \ max=2 SFP Transceivers
1U - Height
Features
- Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
- No configuration or management needed.
- Plug-and-play with fully automated functions and zero ongoing maintenance.
- Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
- Fan-less design for silent deployment in office spaces.
Specification
Differentiator Affordable, plug-and-play, unmanaged series for small businesses looking for simple reliable, and low-cost network connectivity, offering Layer 2 Ethernet switching capabilities to help connect printers and access points, without any complicated network configuration or management needed. With fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these unmanaged switches deliver simple, reliable connectivity for the smallest SMBs and home offices.
Power consumption Maximum: 16.4W Idle: 8W
Input voltage 100-127VAC / 200-240VAC, depending on model
Ports 26 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports
Switching capacity 56 Gbps
Throughput 41.68 Mpps
Memory and processor 32Mb Flash; Packet buffer size: 12.0 Mb
Power supply name Internal Power Supply
PoE capability -
Operating Temperature 0°C to 40°C, 32°F to 104°F
Management features Unmanaged
Warranty Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.
Detailed product description 26 RJ-45 autosensing 10/100/1000 ports
2 SFP 100/1000 Mbps ports
min=0 \ max=2 SFP Transceivers
1U - Height
Weight 5.00 lb
Weight 2.27 kg
Minimum dimensions ( H x W x D) 8.86 x 15.28 x 1.73 in
Minimum dimensions ( H x W x D) 22.5 x 38.8 x 4.4 cm
