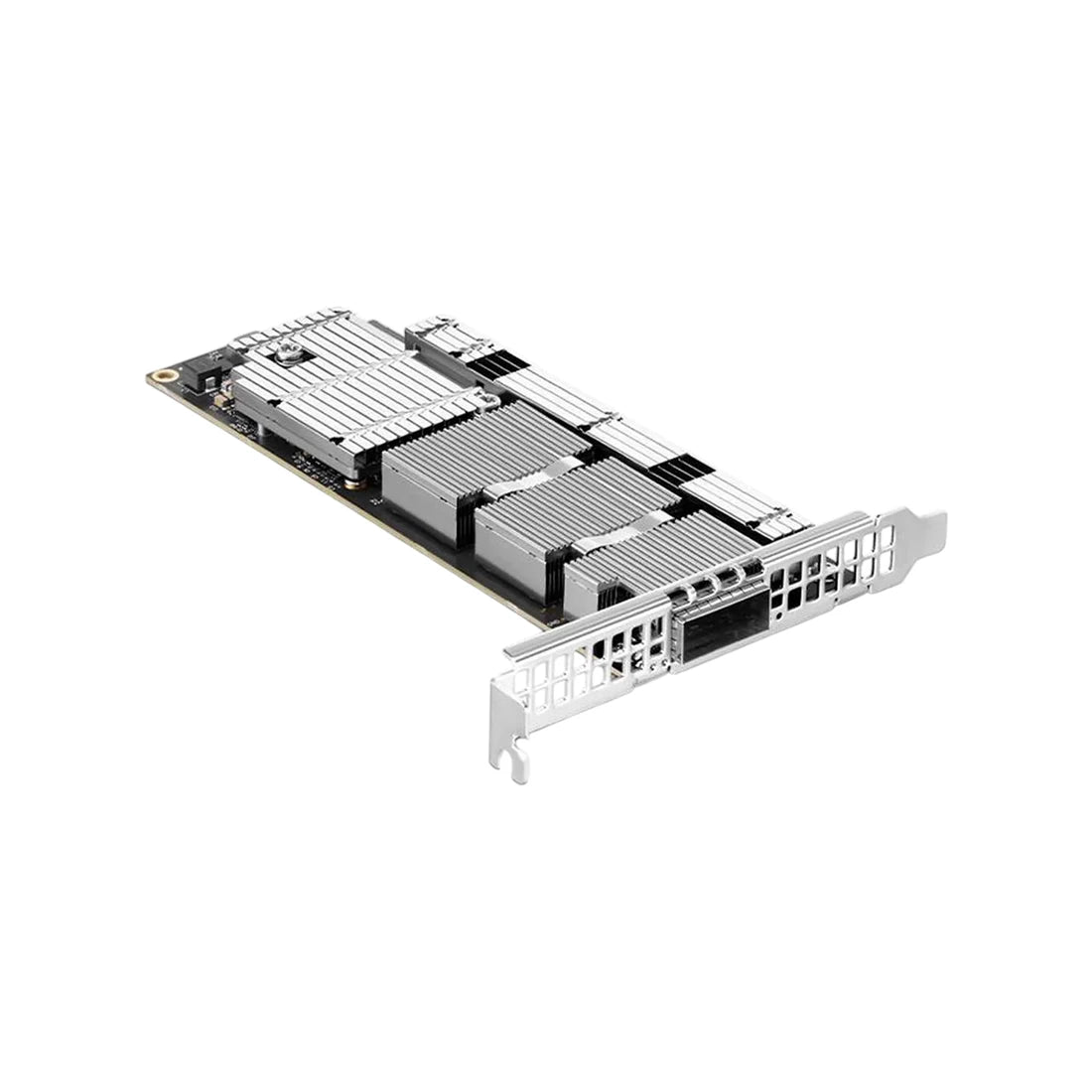

NVIDIA 900-9X766-003N-SR0 ConnectX-7 Adapter Card NDR/400GbE Crypto Enabled | NEW FACTORY SEALED

NVIDIA 900-9X766-003N-SR0 ConnectX-7 Adapter Card NDR/400GbE Crypto Enabled | NEW FACTORY SEALED

Part Number: 900-9X766-003N-SR0

Condition: NEW FACTORY SEALED

**NVIDIA 900-9X766-003N-SR0 Connectx-7 Adapter Card Ndr/400gbe Crypto Enabled**

**Specifications**

**Adapter Card Size** Pcie Half Height, Half Length 2.71 In. X 6.6 In. (68.90mm X 167.65 Mm)

**Interfaces** Pci Express Gen 4.0/5.0: Serdes 16/32gt/s, X16 Lanes (gen 3.0 Compatible)

**Networking Port** Single Osfp Infiniband And Ethernet

**Data Rate**

Infiniband (default Mode): Ndr/ndr200/hdr/hdr100/edr/fdr/sdr

Ethernet: 400/200/100/50/40/10/1 Gb/s Ethernet

**Protocol Support**

Infiniband: Ibta V1.5a

Auto-negotiation: Ndr (4 Lanes X 100gb/s Per Lane) Port, Ndr200 (2 Lanes X 100gb/s Per Lane) Port, Hdr (50gb/s Per Lane) Port, Hdr100 (2 Lane X 50gb/s Per Lane), Edr (25gb/s Per Lane) Port, Fdr (14.0625gb/s Per Lane), 1x/2x/4x Sdr (2.5gb/s Per Lane).

Ethernet: 400gaui-4 C2m, 400gbase-cr4, 200gaui-4 C2m, 200gbase-cr4, 100gaui-2 C2m, 100gbase-cr4, 100gbase-cr2, 100gbase-cr1, 50gaui-2 C2m, 50gaui-1 C2m, 50gbase-cr, 50gbase-r2 , 40gbase-cr4, 40gbase-r2, 25gbase-r, 10gbase-r, 10gbase-cx4, 1000base-cx, Caui-4 C2m, 25gaui C2m, Xlaui C2m , Xlppi, Sfi

**Capabilities** Secure Boot Enabled, Crypto Enabled

**Electrical And Thermal Specifications**

Voltage: 12v, 3.3vaux

Maximum Current: 100ma

**Typical Power With Passive Cables In Pcie Gen 5.0 X16** 25.9w

**Temperature**

Operational: 0°c To 55°c

Non-operational: -40°c To 70°c

**Humidity**

Operational: 10% To 85% Relative Humidity

Non-operational: 10% To 90% Relative Humidity

**Altitude (operational)** 3050m
